GAUGES

PRESSURE GAUGE

Aircraft fuel-pressure gauge Example of the widely used Bourdon pressure gauge Pressure measurement is the analysis of an applied force by a fluid (liquid or gas) on a surface. Pressure is typically measured in units of force per unit of surface area. Many techniques have been developed for the measurement of pressure and vacuum. Instruments used to measure and display pressure in an integral unit are called pressure gauges or vacuum gauges. A manometer is a good example, as it uses a column of liquid to both measure and indicate pressure. Likewise the widely used Bourdon gauge is a mechanical device, which both measures and indicates and is probably the best known type of gauge.

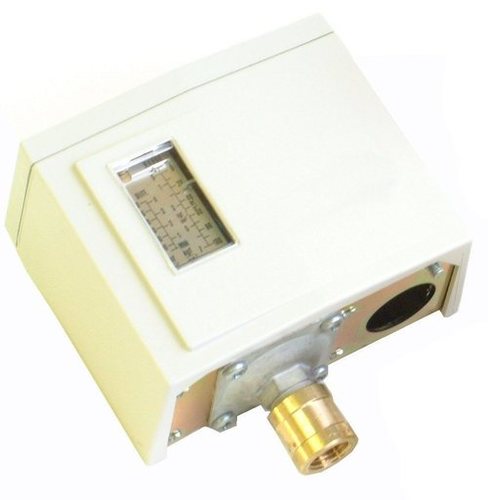

Pressure Switch

Murphy oil pressure gauges with switches that activate on low pressure A pressure switch is a form of switch that closes an electrical contact when a certain set fluid pressure has been reached on its input. The switch may be designed to make contact either on pressure rise or on pressure fall. Pressure switches are widely used in industry to automatically supervise and control systems that use pressurized fluids.

Gauge Saver

Level Gauge

Continuous level indication without power supply Indication of the level proportional to height Individual design and corrosion resistant materials make the products suitable for a broad range of applications Chemical, petrochemical industry, oil and natural gas extraction (on- and offshore), shipbuilding, machine building, power generating equipment, power plants Process water and drinking water treatment, food industry, pharmaceutical industry

Schaffer LP&HP

RTD Thermocuple

Pressure Swithch

Pressure Gauge

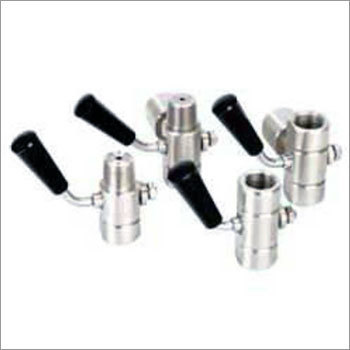

Gauge Cock
